Like ARTC Lab 4 © R. Craig Collins, 2007

A Flash video of the Method One portion of the activity is also available, but read over the steps first.
A YouTube video of this is also available, but read over the steps first. http://www.youtube.com/watch?v=bV2SfHglM34

As mentioned previously, there are two ways to make a file with transparency. Mark an area or color, and tell the computer to ignore that area or color (required for lab 4) , or method two, add a transparent layer, and cut out the parts you don't wish to see (will be covered in detail later in the semester).

Method One: Tell the computer which area to ignore, which makes part of the image transparent.

1. Open the image, lab1.bmp, using the GIMP software

2. Choose the 'Select contiguous regions' tool, and click the blue background.
This selects the area that we want to eventually tell the computer to ignore, allowing transparency.

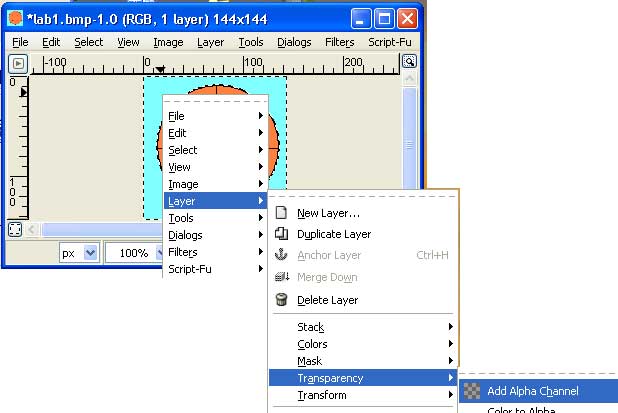

3. Right click the selected blue area, then choose Layer\Transparency\Add Alpha Channel.
(You can also select the Layer menu, then choose Transparency\Add Alpha Channel)
The Alpha channel will be covered more later, but for now, just associate Alpha Channel with the green screen the weather man stands in front of... it will be removed by the computer.
The Alpha Channel looks like a gray checkerboard... that is how the GIMP software shows transparency

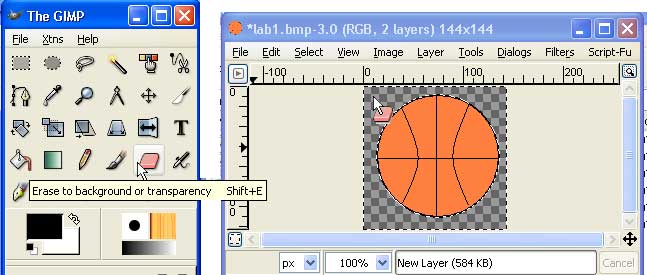

4. Select the Eraser tool, which can now be used to erase the blue, leaving the gray checkerboard that indicates transparency

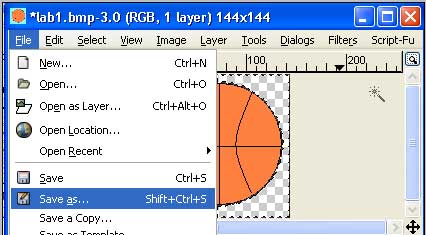

5. Now to save the file, using File\Save As...
Note: Newer versions of GIMP use Export, rather than Save As...
So you may need to use File\Export
Click the [+] near the bottom of the dialog box to open file types.

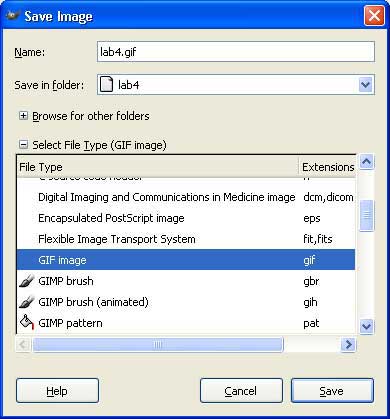

6. Choose the gif file type, and name the file lab4.gif

7. The GIMP software warns that the file must be exported, a step to convert the information to meet the 256 color limit

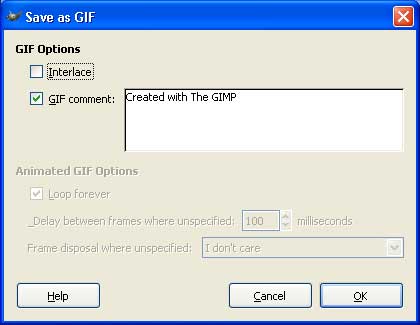

8. You may leave a comment, this will not display.

Method Two, adding a transparent layer.
Transparent layers will be covered in detail later, this is just for background

Open the file, lab1.bmp

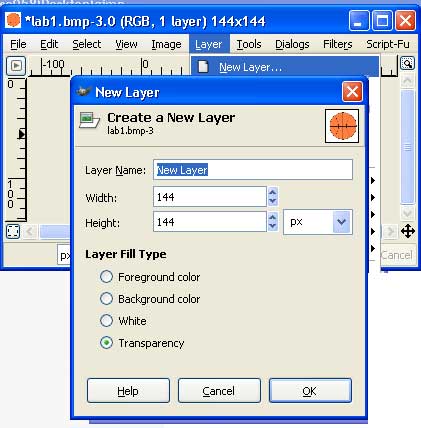

Using the Layer menu, choose New Layer, and set it to transparency

Rearrange the layers so the transparent layer is below the old background layer, with the ball.
There is a trick to this, it will be covered later... again, this is just for background

Choose the 'Select contiguous regions' tool, and click on the blue background

Use the Eraser tool to remove the blue background, leaving the transparent layer behind it

From here, saving the file is identical t the process mentioned above

A video of the Method One portion of the activity is also available
